CVS Repositories view shows the repository locations added to the LyciaStudio.

To expand the repository tree, click the pointer next to the repository location:





The repository tree includes the main trunk (HEAD) and branches. When you expand the branch, you see the folders and files it contains.



CVS Repositories view toolbar





Home

shows the location of the selected CVS repository

Back

undoes the effect of the previous Go into command (i.e. shows the roots displayed before you pressed Go into)

Go into

displays the children of the selected entry

Refresh view

refreshes the contents of the CVS Repositories view

Collapse all

collapses all the roots in the view

Add CVS Repository

brings up the Add CVS repository wizard:





View menu

opens the drop-down menu :





Minimize

minimizes the view

Maximize

maximizes the view



From the drop-down menu of the СVS repositories view, you can perform these actions:



Filter...

allows selecting whether the modules are shown or not:







Remove Filters

removes the filters



Select Working Set

allows selecting one or more working sets:







Sort by

allows sorting  the repositories by their labels, locations, hosts, or in the order of descent:







Structure of the CVS Repositories view



collapsed view

expanded view



g







yhyj



The structure of the CVS Repositories explorer includes the following nodes:



[root node]

represents the repository itself,

includes the name of the repository, its active branch, and the repository location in the file system

HEAD

represents the main trunk of the repository and provides access to its folders

Branches

provides access to the repository branches,

allows their browsing and manipulation (like creating a new branch or merging branches)

Versions

represents project versions

Dates

represents the view history



CVS Repositories view context menus



The commands available in the context menu depend on the selected node - root, Head, Branches, Versions, or Dates.

Some options are shared by most or several context menu.


Context menu of the root node







New

allows adding more repositories and data tags:





Refresh Branches

refreshes the list of branches displayed in the view:







Paste Connection

allows adding a new repository to the CVS Repositories view by pasting its locations from the clipboard (Ctrl + V)





Copy to Clipboard

copies the identification string of the selected repository (e.g., :pserver:client@client.querix.com:/lycia_doc_examples) to the clipboard



Refresh view

refreshes the contents of the CVS Repositories view



Discard location

removes the selected repository



Properties

allows modifying properties of the location, assigning the display name and the server encoding:







Context menu of HEAD







New

allows adding more repositories and data tags





Paste Connection

allows adding a new repository to the CVS Repositories view by pasting its locations from the clipboard



Refresh view

refreshes the contents of the CVS Repositories view





Context menu of the Branches node







New

allows adding more repositories and data tags



Refresh Branches

refreshes the list of branches displayed in the view





Paste Connection

allows adding a new repository to the CVS Repositories view by pasting its locations from the clipboard



Refresh view

refreshes the contents of the CVS Repositories view




Context menu of a repository folder



Expand the Head node and right click any folder it contains:







New

allows adding more repositories





Check Out

checks out the selected CVS modules into the workspace as a project of  the same name:



Keep in mind that only projects can be checked out.

If you check out a folder with several projects, then this folder will be imported to your workspace as a project. Thus, the typical project structure (with source and output folders, etc.) will not be reproduced, and you won't be able to work with your project:









Check Out As

opens a Check Out wizard where you can select the check out method (read more about checking out here):





Tag as Version

versions the selected resource based on the current branch contents (this option is available only if you have the write access to the repository)



Tag with Existing

versions the selected resource based on the current branch contents, moving the tag from previously tagged resources if required (this option is available only if you have the write access to the repository)



Compare with

compares the selected folder with a branch or version in the same folder



Expand All

expands all the items in the selected folder

Add to Branch List

adds the selected project to the list of projects displayed under the specified branch in the CVS repositories view:





Configure Branches

and Structure

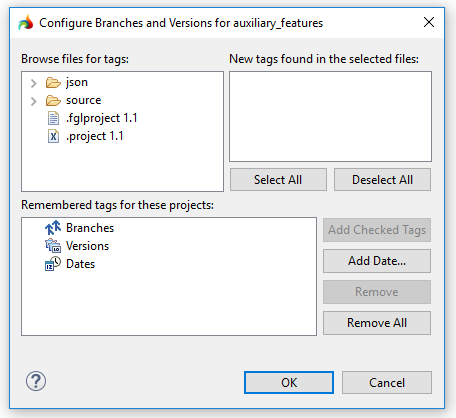

opens the Configure Branches and Versions dialog.

In this dialog, you can find branch and version tags that exist in the repository and add these tags/branches to the CVS repositories view (in order to allow browsing their resources):







Context menu of a file in the repository







New

allows adding more repositories

Tag as Version

versions the selected resource based on the current branch contents



Tag with Existing

versions the selected resource based on the current branch contents, moving the tag from previously tagged resources if required



Paste Connection

allows adding a new repository to the CVS Repositories view by pasting its locations from the clipboard



Compare with

compares the selected folder with a branch or version in the same folder



Compare

opens the comparison dialog

Show Annotation

shows the contents of the file with annotations identifying the author of the file:





Show History

shows the revision history for the selected file in the History view (the view opens automatically, if closed):







Open

opens the selected file in the code  editor



The editor opens in a read-only version.

You cannot modify the file.



Refresh view

refreshes the contents of the CVS Repositories view
