fgl_winbutton()

Displays an interactive message box with multiple choices.

fgl_winbutton() has a twin function – fgl_winquestion().

fgl_winquestion() has exactly the same functionality as fgl_winbutton(), so it doesn't require a separate page in this documentation: any examples and explanations apply to both functions.

We recommend using fgl_winbutton() for your development tasks because fgl_winquestion() is kept only for compatibility reasons.

Syntax

fgl_winbutton(title, text, default, buttons, icon, danger)

Parameters

title, the title of the message box (a string of characters or a variable of the STRING or CHAR data type)

text, the text that will be displayed in the message box (a string of characters or a variable of the STRING or CHAR data type)

default, the name of the button that will be selected by default (a string of characters or a variable of the STRING or CHAR data type)

buttons, the list of buttons that will be displayed to the message box (the list of values separated by | or a variable of the STRING or CHAR data type)

icon, the conventional name of the icon that will be displayed in the message box (a string of characters or a variable of the STRING or CHAR data type)

danger, a legacy parameter kept for compatibility reasons, must be always set to 1

Usage and examples

fgl_winbutton() produces an interactive fully-customizable message box with one or more buttons:

CALL fgl_winbutton("Title of the message", "This is the text of the test message.", "A", "A|B|C|D|E", "info", 1)

fgl_winbutton() is the most customizable one among all the message box functions.

4gl developer has a complete control over the buttons in message boxes produced by fgl_winbutton(): You can specify their number, text, and the default button.

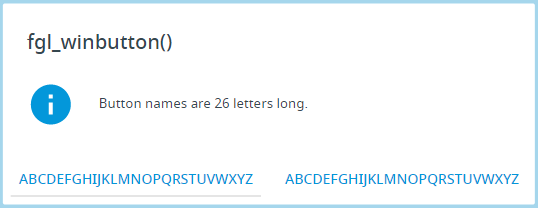

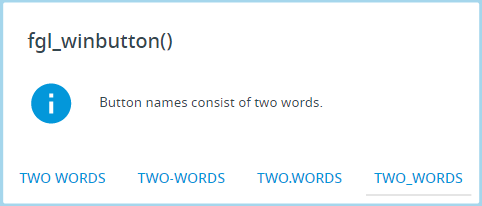

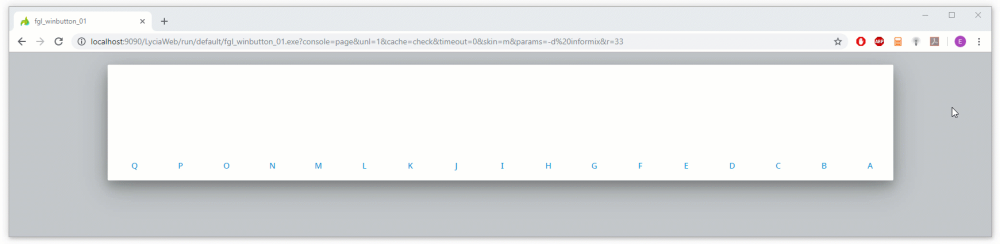

Number of the buttons and the length of their names is almost unlimited:

If the 1st parameter is NULL, the message will have no title:

CALL fgl_winbutton("", "Choose your letter.", "A", "A|B|C|D|E", "info", 1)

If the 2nd parameter is NULL, the message will have no text:

CALL fgl_winbutton("fgl_winbutton()", "", "A", "A|B|C|D|E", "info", 1)

If the 3rd parameter is NULL, the 1st button will be selected by default:

CALL fgl_winbutton("fgl_winbutton()", "Choose your letter.", "", "A|B|C|D|E", "info", 1)

If the 4th parameter is NULL, the message box will have only one button – OK:

CALL fgl_winbutton("fgl_winbutton()", "Choose your letter.", "A", "", "info", 1)

If the 5th parameter is NULL, the message will have no icon:

CALL fgl_winbutton("fgl_winbutton()", "Choose your letter.", "A", "A|B|C|D|E", "", 1)

If the 6th parameter is NULL, nothing will change as the parameter is the legacy one and is kept only for compatibility reasons:

CALL fgl_winbutton("fgl_winbutton()", "Choose your letter.", "A", "A|B|C|D|E", "info")

There are four icons that can be used in message boxes – info, exclamation, question, and stop:

To display the message text in several lines, you must add \n in the place where the new line must start:

CALL fgl_winbutton("fgl_winbutton()", "This is the 1st message line. \nThis is the 2nd message line.", "A", "A|B|C|D|E", "info", 1)

You can change the appearance on the message box by applying css styles.

Exact selectors depend on what Lycia version you use, jquery or Material Design one:

the whole message box:

.qx-mb-dialog
the title of the message box (only jquery Lycia):

.qx-mb-dialog .ui-dialog-title
the text in a message box:

.qx-mb-dialog pre

.qx-mb-dialog .qx-message-box-text
the buttons of the message box:

.qx-mb-dialog .qx-winmessage-button

.qx-mb-dialog .qx-button-wrapper .qx-winmessage-button

For example,

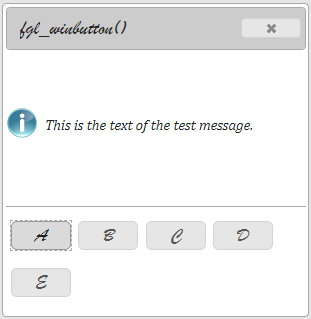

jquery Lycia:

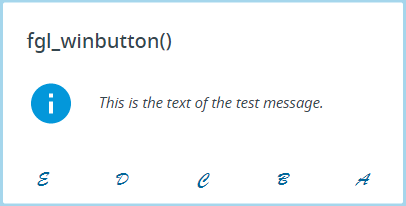

Material Design Lycia:
