Layout properties

Besides modifying the separate form elements appearance, Theme Designer offers you the possibility of influencing their layout. It supports a number of properties which can help you to manage an object position, the distance between elements, etc.

Grid Panel Properties

Grid Panel can be applied to the objects placed within the Grid Panel container.

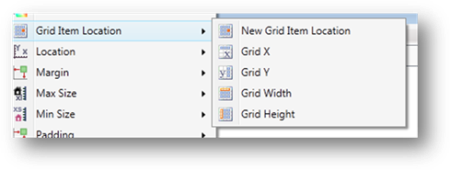

Grid Item Location

GridItemLocation indicates the place and the size of an object, located within a Grid Panel container.

It provides the options described below

• Grid Height sets up the number of the grid rows that the object should occupy.
• Grid Width specifies the number of grid columns that the object should occupy.
• Grid Xis the index of the grid column in which the top left corner of the object is to be placed.
• Grid Y is the index of the grid row in which the top left corner of the object is to be placed.

Border Panel Item Location

Border Panel Item Location specifies the location of a border panel item relatively to the border.

Possible values:

Top places an item along the top border;

Bottom places an item along the bottom border;

Right places an item along the right border;

Left places an item along the left border;

Center places an item in the centre of the grid panel.

Location

Location sets the position of the selected element within its parent element along the coordinate axes.

It provides two options:

• X coord defines an element position horizontally in relation to the left edge of the parent element;
• Y coorddefines an element position vertically in relation to the top edge of the parent element.

Z Order

ZOrder determines which element is atop if two or more objects overlap.

For example, a static label created by the DISPLAY statement can overlap form widgets or another static label. In this case the property should be assigned to each element.

An element with a larger Z order index is atop: if a form widget and a static label have indices '5' and '1' respectively, the form widget is brought forward and displayed above the label.
