placeholderText

Lycia is going to move to Material Design.

placeholderText is one of the new properties available only for the material-design version of Lycia.

placeholderText property sets the placeholder text = the text displayed by default to a TextArea or TextField.

Form XML code:

<TextField ... placeholderText="placeholderText"/>

Theme property filter XML code:

<ElementFilter ElementName="Label">

  ...

      <SetProperty nil="yes">

        <PropertyPath>

          <PropertyName>PlaceholderText</PropertyName>

        </PropertyPath>

      </SetProperty>

  ...

</ElementFilter>

Possible values:

depends on the user's needs

Associated containers, widgets and theme elements:

TextArea

TextField

Associated ui methods:

setPlaceholderText()

getPlaceholderText()

Influence and behavior:

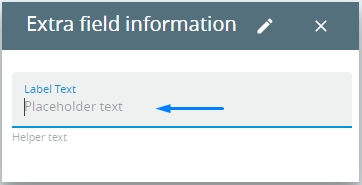

placeholderText is used to specify the text displayed by default to the TextArea or TextField:

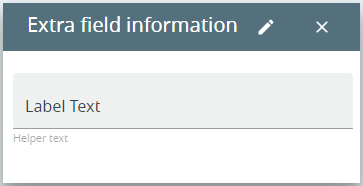

The placeholder text is invisible until you move the cursor to the field - the placeholder text is hidden by the label text:

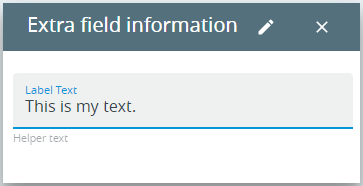

When you start typing, the placeholder text will disappear and will be replaced by your input text:



By default, placeholderText is not set either in .fm2 form or in .qxtheme theme and is absent at runtime:

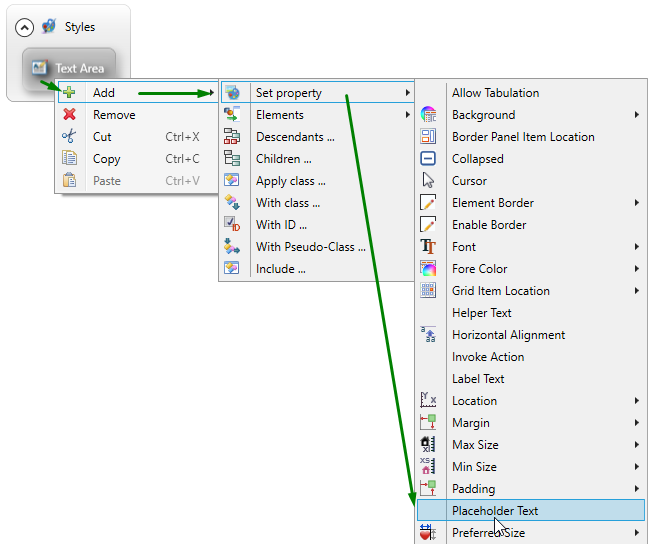

Besides setting the placeholder text via Lycia Form Designer or Lycia Theme Designer, you can do it by ui methods:

setPlaceholderText()

specifies the placeholder text for the widget

getPlaceholderText()

returns the placeholder text specified for the widget in the .fm2 form, .qxtheme theme, or by setPlaceholderText()

MAIN

DEFINE textfield ui.TextField

OPEN WINDOW w WITH FORM "lhp_texts" ATTRIBUTE(BORDER)

LET textfield = ui.TextField.forName("f1")

CALL textfield.SetPlaceholderText("This text comes from setPlaceholderText().")

CALL fgl_getkey()

END MAIN
