Events

Events group specifies the way the program will react on the users’ actions performed with the form object.

The properties of this group are used to specify one of the following events that will be triggered after the user performs some action:

• Action Event Handler
• Batch Event Handler
• Key Event Handler
• Start Program Event Handler
• Open URL Event Handler
• Specific Key Event Handler
• Function Event Handler

Event	Description
onInvoke	is triggered when the user clicks a button widget, a button of the Function Field widget, a menu or a toolbar button
onKeyDown	is triggered when a keyboard key is pressed down
onKeyUp	is triggered when a pressed keyboard key is released
onMouseDown	is triggered when the user presses a mouse button down
onMouseUp	is triggered when the pressed mouse button is released
onMouseClick	is triggered when the user clicks the left mouse button
onMouseDoubleClick	is triggered when the user double clicks the left mouse button
onMouseEnter	is triggered when the user moves the cursor into the object for which this event is specified
onMouseExit	is triggered when the mouse cursor leaves the object
onMouseHover	is triggered when the mouse cursor stays over the object and doesn’t move for one second
onMouseMove	is triggered when the mouse cursor moves over the object
onMouseWheel	is triggered when the user rolls the mouse wheel
onCheck	is triggered each time the user marks a Checkbox or a RadioGroup
onUncheck	is triggered each time the user removes the mark from a Checkbox or a RadioButton
onValueChanged	is triggered when the value in a field is changed at runtime
onSelectedTabPage	specifies an action, triggered each time the user selects the tab page with this event specified (is available for TabPage only)

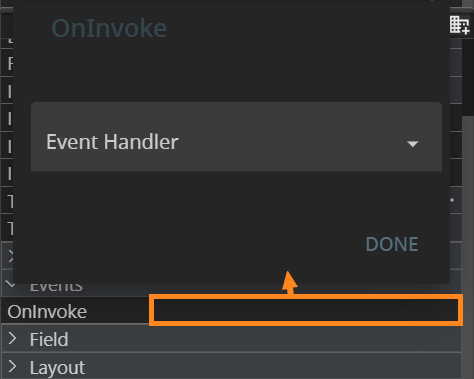

To specify an event, select on its row in the Properties view, and then press the details field:

Each event handler includes at least two properties – the handler specification (e.g., action or key names) and a SubDialogIdentifier. The SubDialogIdentifier is used to specify the ID of the field in which the current event can be activated. If this property is set, the event will be triggered only when the cursor is placed in the specified field and ignored when in others.



With LyciaWeb, StartProgramEventHandler works differently with OnInvoke and OnMouseClick:

• with OnInvoke, the new application replaces the current one,
• with OnMouseClick, the new application starts withing the current one.

With LyciaDesktop, there is no such difference – the new application starts withing the current one in both cases.
