Overview of Lycia LowCode Settings

Lycia LowCode has two records, InteractForm_Settings and View, to define data needed for the library's interaction with your programs. This data should be set before starting the interaction and cannot be changed during execution.

Settings Levels: 'InteractForm_Settings' and 'View'

The InteractForm_Settings record stores settings used for the entire program. However, you will need the Views record settings to specify the screen record even if there's only one interaction.

The ‘InteractForm_Settings’ Record

Here's the list of settings you can configure using this record:

TYPE InteractForm_Settings RECORD                #

form_file            STRING                # The form file that should be opened

, id                   STRING                # Optional, a form file can contain multiple InteractForm settings, and it can be selected by 'id'

, log_file             STRING                # The path to log file. It's optional property.

, translations         HASHMAP OF STRING     # Map of message/table/column translations

, views                HASHMAP OF View # The mapping of database table name and a its matching settings in the specific interaction.

, actions              HASHMAP OF HASHMAP    # Custom actions "SubIntercation - Action - Function", which will be added to the subdialog of defined table view and executed before LLC build-in event executing.

, actions_on_done      HASHMAP OF HASHMAP    # Custom actions "SubIntercation - Action - Function", which will be added to the subdialog of defined table view and executed after LLC build-in event executing.

, view_attributes      HASHMAP OF HASHMAP    # Custom attributes "SubIntercation - Attribute - Value", which will be applied to Dialog.

, paged_mode           INT                   # If positive then buffer should be used (in this case it will take less time for starting interaction). This is the default value for all views that do not have a specified value.

, input_mode           INT                   # If negative or 0 then  DISPLAY ARRAY should be used, otherwise (positive) INPUT ARRAY is used. This is the default value for all views that do not have a specified value.

, pessimistic_locking  INT                   # Pessimistic row locking is disabled by default (optimistic does not lock table during input, but only for the time of the actual db update). This is the default value for all views that do not have a specified value.

, confirm_accept       INT                   # If positive then it shows a message box for yes/no/cancel when data has been changed AND the user presses ACCEPT. The default is negative (-1). This is the default value for all views that do not have a specified value.

, confirm_cancel       INT                   # If positive then it shows a message box for yes/no/cancel when data has been changed AND the user presses CANCEL. The default is positive (1). This is the default value for all views that do not have a specified value.

END RECORD

Note: For description of every setting, refer to the Quick Reference Table.

For this level, configuring the log_file setting in 4GL will look like this:

LET l_rec_settings.paged_mode = 1

l_rec_settings is the variable for LowCode settings, which you must define before configuring specific settings. Read about the full Lycia LowCode workflow in the Defining Lycia LowCode Settings section of this page.



Return to top

The ‘View’ Record

The settings from the View record are used to customize a certain interaction with a certain database table. Each program has at least one View (interaction with a table), but with two or more Views you can define several collection of settings to configure different interactions. If the setting has not been defined on the View level, Lycia LowCode will use the definition on the InteractForm_Settings level.

To use multiple database tables for your program, configure multiple Views. The settings of the View are the following:

TYPE View RECORD                                 #

screen_record        STRING                # The screen record name in the form that should be used. It's mandatory property.

, actions              HASHMAP OF HASHMAP    # Custom actions "SubInteraction - Action - Function", which will be added to the subdialog of defined table view and executed before LLC build-in event executing.

, actions_on_done      HASHMAP OF HASHMAP    # Custom actions "SubInteraction - Action - Function", which will be added to the subdialog of defined table view and executed after LLC build-in event executing.

, view_attributes      HASHMAP OF HASHMAP    # Custom attributes "SubInteraction - Attribute - Value", which will be applied to the subdialog of defined table view.

, not_update_fields    DYNAMIC ARRAY OF STRING # The list of field which should not be activated on the Edit action

, paged_mode           INT                   # If positive, then buffer will be used (in this case it will take less time for starting interaction)

, input_mode           INT                   # If negative or 0, then DISPLAY ARRAY will be used; if any positive value, INPUT ARRAY will be used

, pessimistic_locking  INT                   # Pessimistic row locking is disabled by default (optimistic does not lock table during input, but only for the time of the actual db update)

, sql_where_search     STRING                # The WHERE clause of the main query that can be overwritten as soon the user applies a Search (Construct)

, sql_where            STRING                # The WHERE clause of the main query that can NOT be overwritten by user

, sql_order_by         STRING                # The ORDER BY clause for the main query

, sql_top              INT                   # The option to limit the base cursor row using the SQL SELECT TOP clause

, confirm_accept       INT                   # If positive then it shows a message box for yes/no/cancel when data has been changed AND the user presses ACCEPT. The default is negative (-1)

, confirm_cancel       INT                   # If positive then it shows a message box for yes/no/cancel when data has been changed AND the user presses CANCEL. The default is positive (1)

, comboboxes           HASHMAP OF Combobox   # Map of combobox field names and its sql where clause and dependencies

, lookups HASHMAP OF STRING   # Map of lookup field names and its 'match' string that will be used in SQL WHERE clause

, zooms HASHMAP OF Zoom # Map of functionfield names and definitions of form for selecting value

, navigation_status    STRING                # Target location for the DISPLAY of navigation status (which can be a label or a textField)

END RECORD

Note: For description of every setting, refer to the Quick Reference Table.

For this level, configuring the log_file setting for a certain View in 4GL will look like this:

LET l_rec_settings.views["<table_name>"].paged_mode = 0

l_rec_settings here is the variable for LowCode settings, which you must define before configuring specific settings. Read about the full Lycia LowCode workflow in the Defining Lycia LowCode Settings section of this page.



Return to top

Defining Lycia LowCode Settings

You can define Lycia LowCode settings in the following ways:

Note: If the specific setting of the same level has been defined in both .4gl and .fm2 form files, Lycia LowCode will consider a setting definition in .4gl file as main.
Tip: You can also disable any Lycia LowCode setting (or have it not defined) in a certain View while having it enabled in another View.



Return to top

‘views’ and ‘id’

The id is an identifier for the specific group of settings stored inside the views values array. You can define several groups of settings in the .fm2 form file or .4gl file, with different ids, and specify what settings the program must use at which interaction. This way, you can reuse the same form for different purposes.

Note: In .4gl file settings definitions, the id setting stores a list of Views. In .fm2 form file, there are several definitions of the id setting, one per each settings group (in other words, one id per View).



Return to top

Defining Settings in .4gl File

Step 1. Link the Lycia LowCode library lib_llc_interact_form/llc_interact_form.4gl in your project:

GLOBALS "../lib_llc_interact_form/llc_interact_form.4gl"

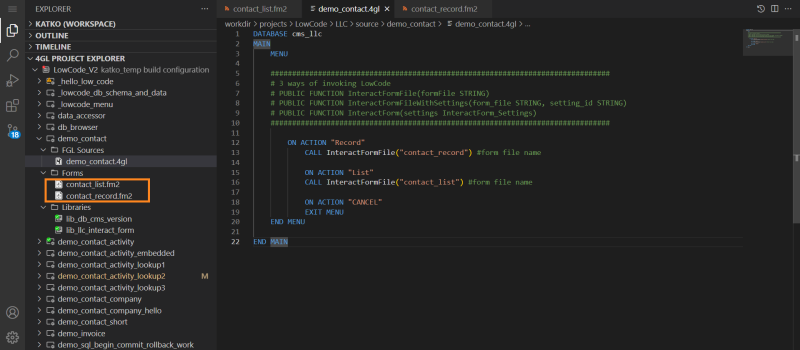

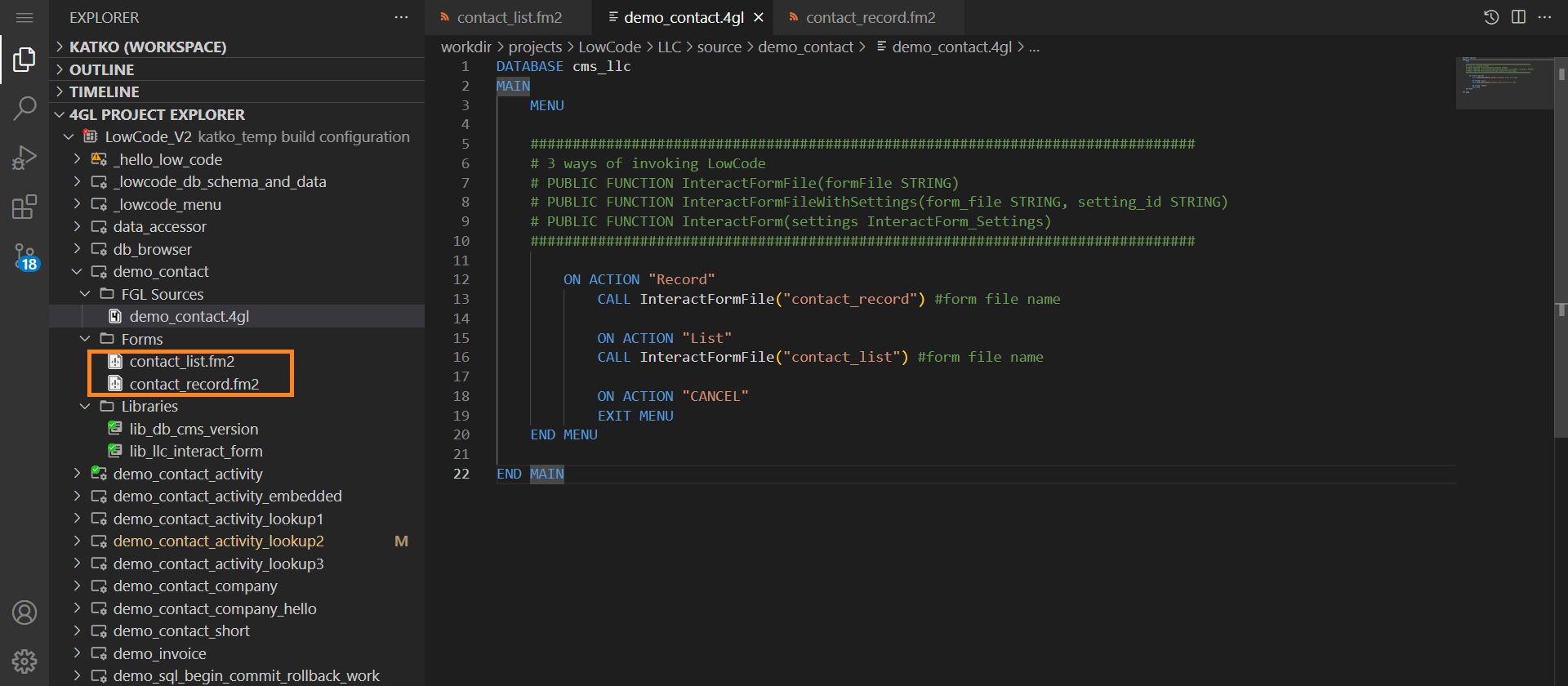

Step 2. Call one of the following functions:

# 3 ways of invoking LowCode:

# PUBLIC FUNCTION InteractFormFile(formFile STRING)

# PUBLIC FUNCTION InteractFormFileWithSettings(form_file STRING, setting_id STRING)

# PUBLIC FUNCTION InteractForm(settings InteractForm_Settings)

Step 3. Create a function with Lycia LowCode settings and assign the values, like in the example below:

FUNCTION db_cms_virtual_field_rec()

DEFINE l_rec_settings InteractForm_Settings



LET md_log_console = NULL #clear console screen variable



LET l_rec_settings.form_file = "../misc/misc_virtual_field_rec"

LET l_rec_settings.id = "virtual_field"

LET l_rec_settings.log_file = "../log/db_cms_virtual_field.log" #enable log file

LET l_rec_settings.actions[""]["ON ACTION Show Data"] = FUNCTION math_on_action_show_data

LET l_rec_settings.actions[""]["AFTER ROW"] = FUNCTION math_on_action_show_data

LET l_rec_settings.actions["UPDATE"]["AFTER INPUT"] = FUNCTION math_after_input

LET l_rec_settings.actions["INSERT"]["AFTER INPUT"] = FUNCTION math_after_input

LET l_rec_settings.views["test03"].navigation_status="nav_page_of"

Note: For defining settings to control all the interactions of a program, use the following format:

LET <settings_variable>.<setting_name> = <setting_value>.

For defining settings for the interaction with the specific database table, use the following format:

LET <settings_variable>.views["<db_table_name>"].<setting_name> = <setting_value>.



Return to top

Defining Settings in .fm2 Form File

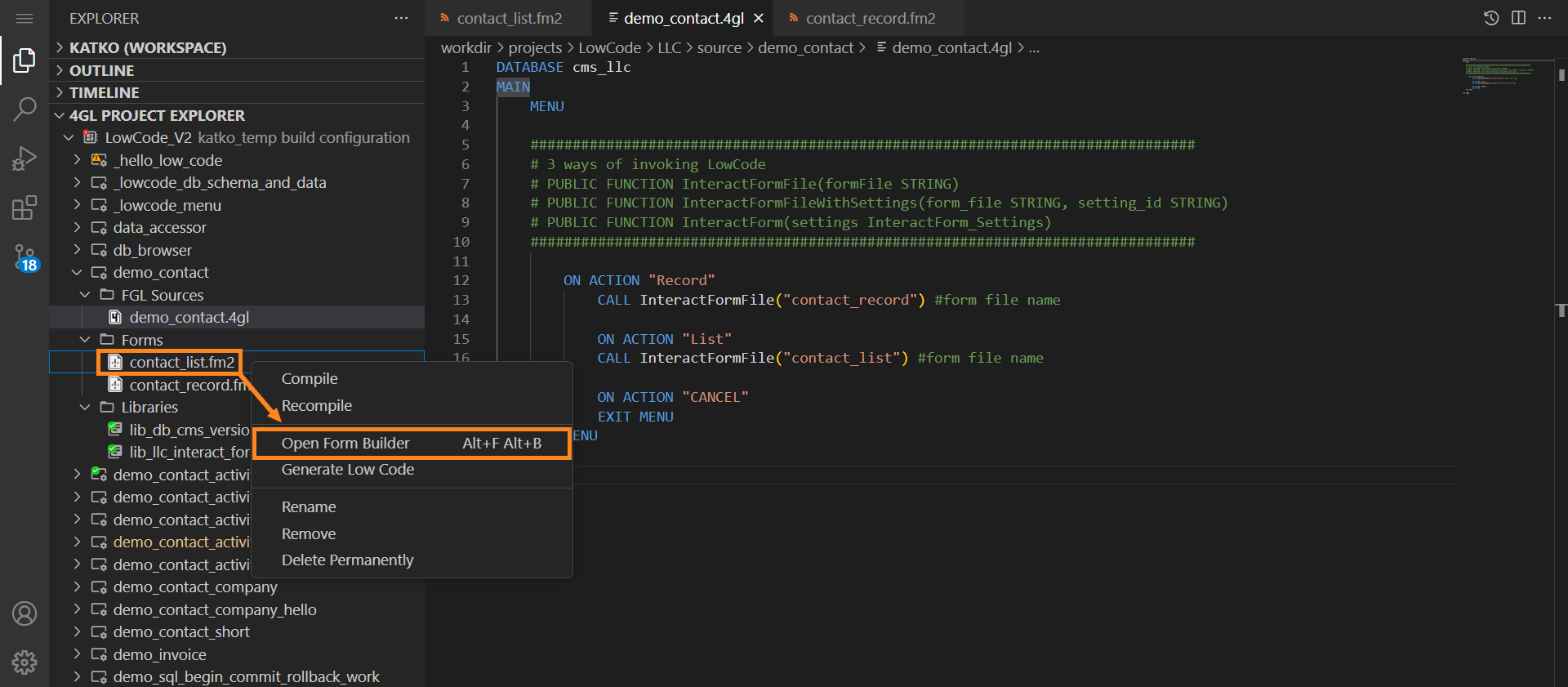

Step 1. Although the settings themselves can be set in a form file, you need to link Lycia LowCode library in your .4gl file before defining specific settings:

GLOBALS "../lib_llc_interact_form/llc_interact_form.4gl"

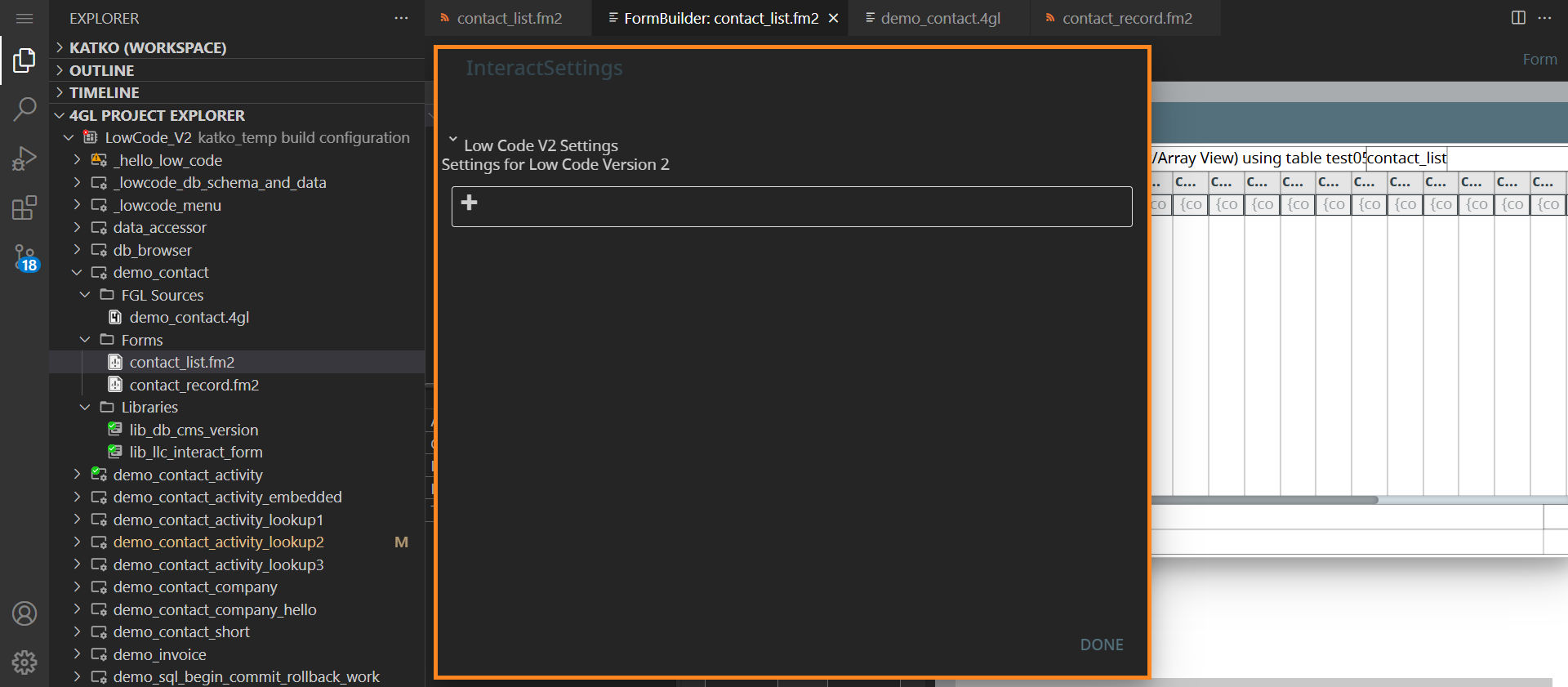

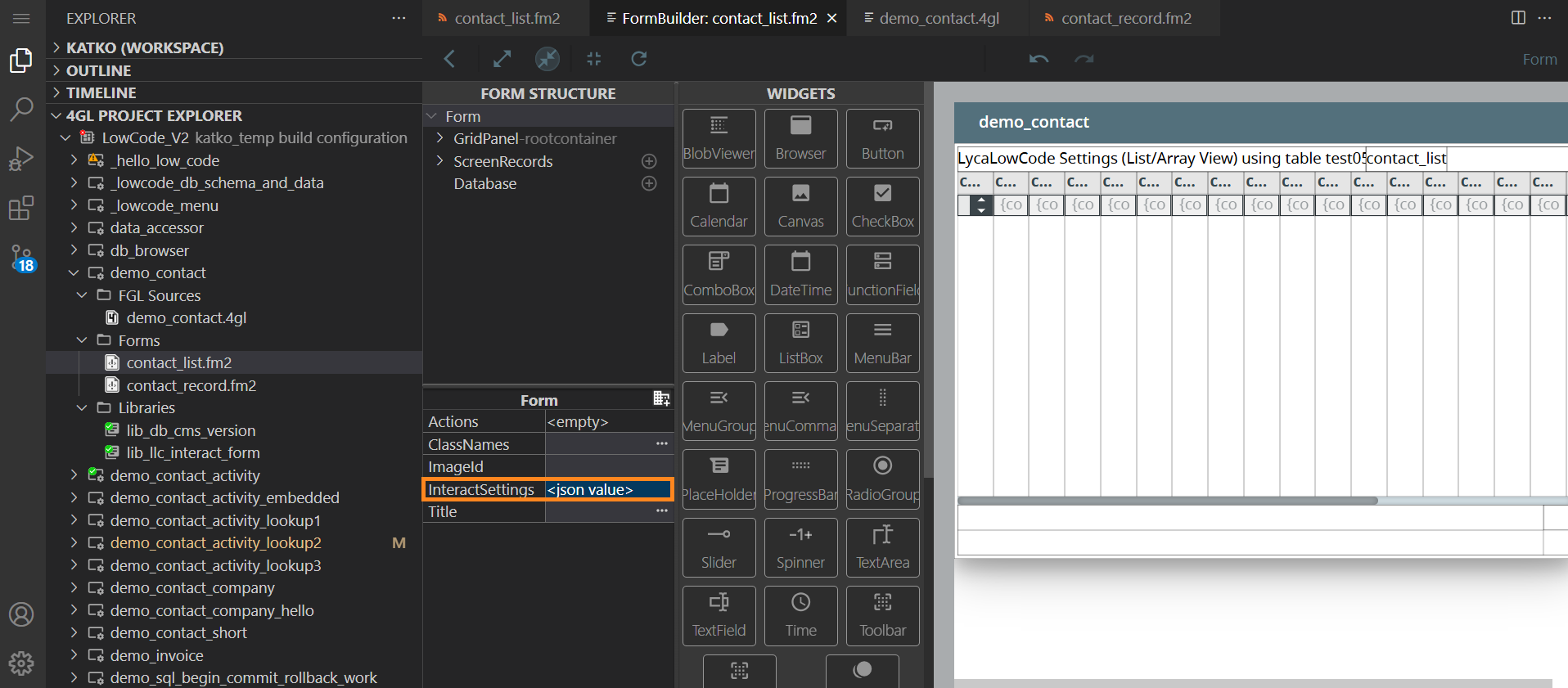

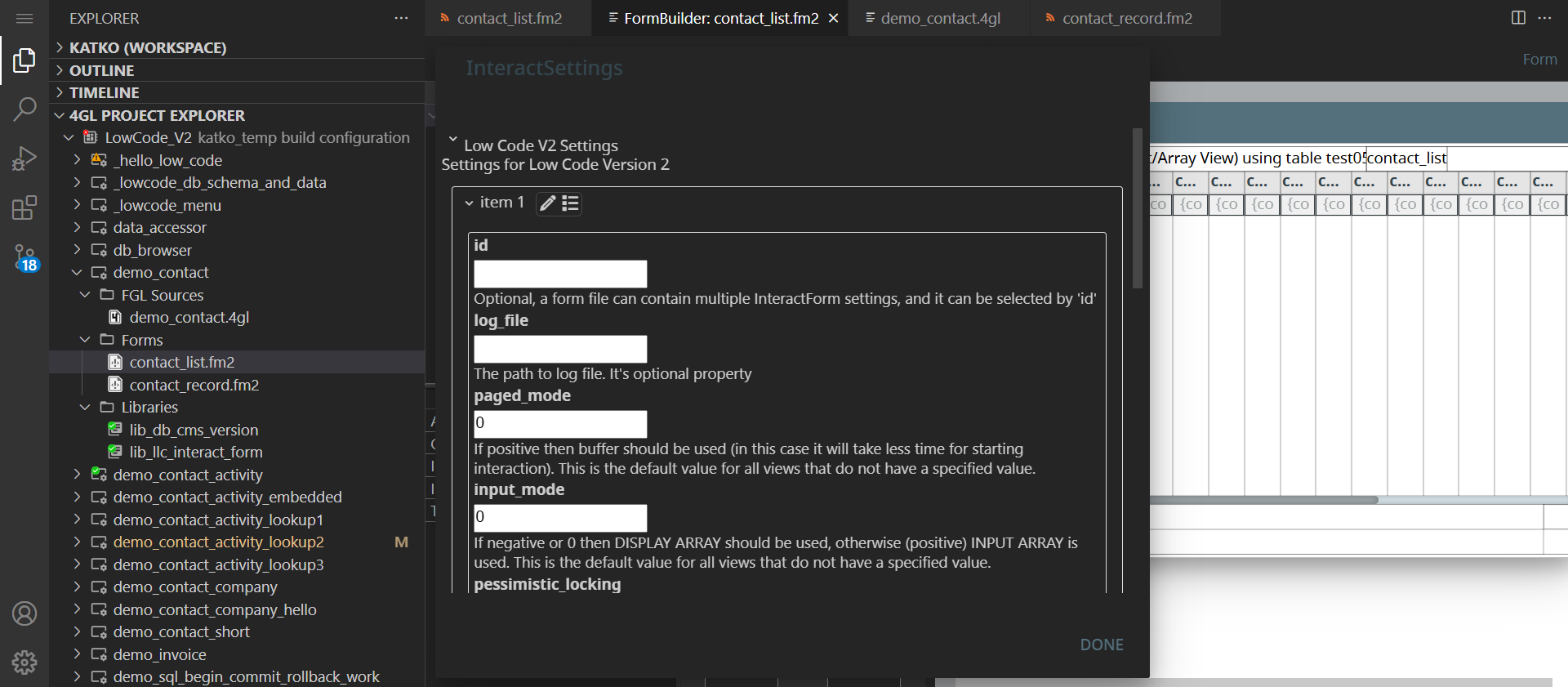

Step 2. In .fm2 form file, create a JSON record that will specify the settings of a main level by the following structure:

<form xmlns="http://namespaces.querix.com/2015/fglForms"

interactSettings='

[

{

"<setting_1_name>":<setting_1_value>,

"<setting_2_name>":<setting_2_value>,

...

"<setting_n_name>":<setting_n_value>

}

]'>

Note: The interactSettings key in this form file is responsible for the main level of the settings (the ones from the InteractForm_Settings record).

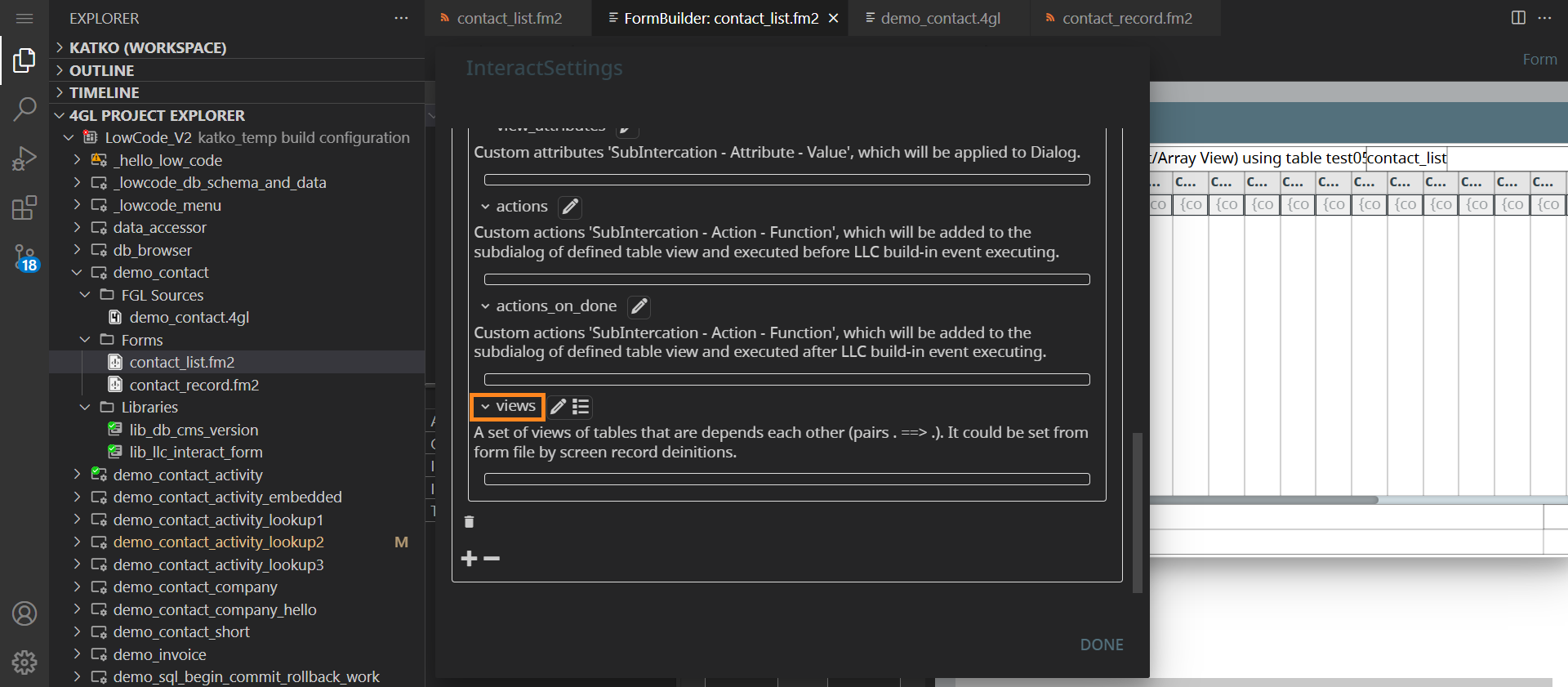

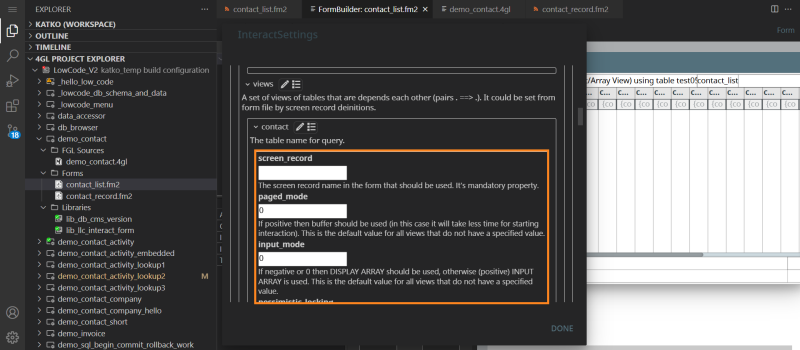

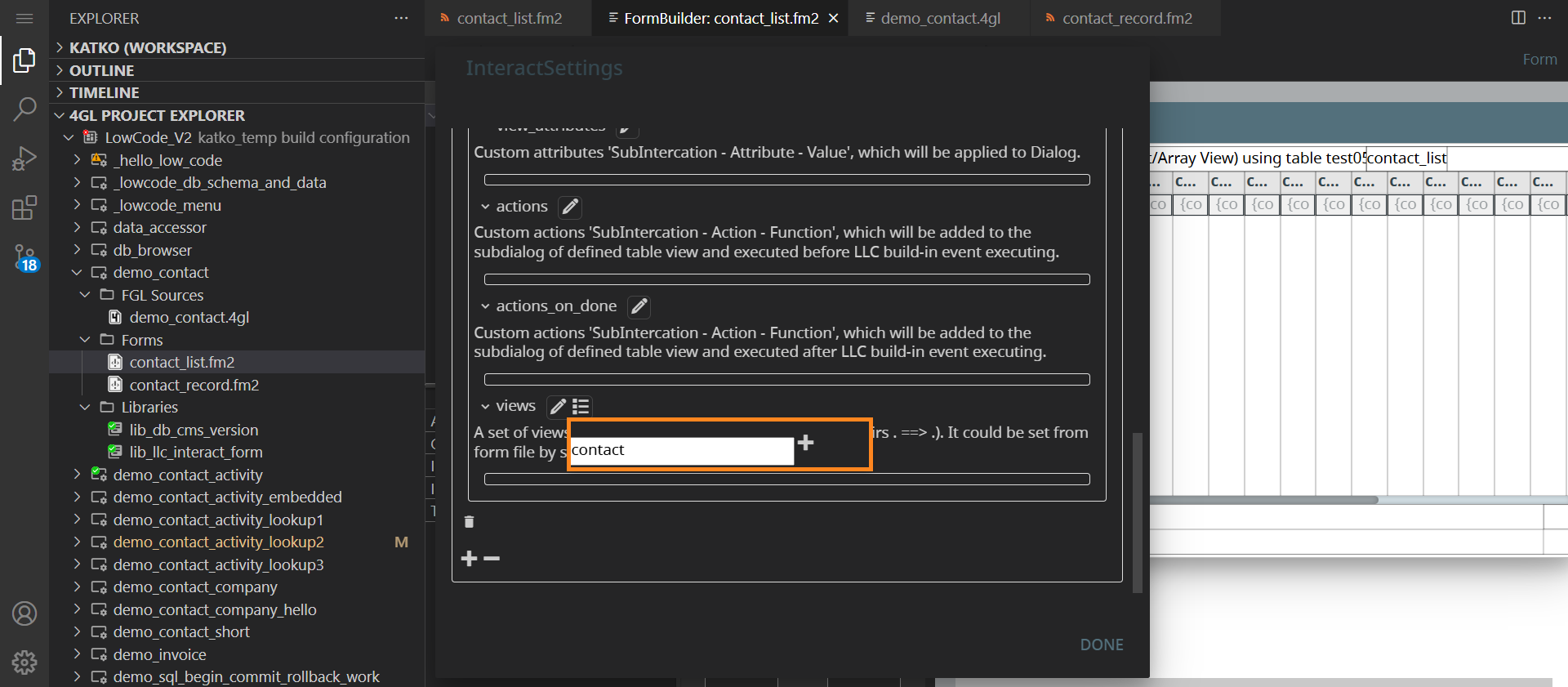

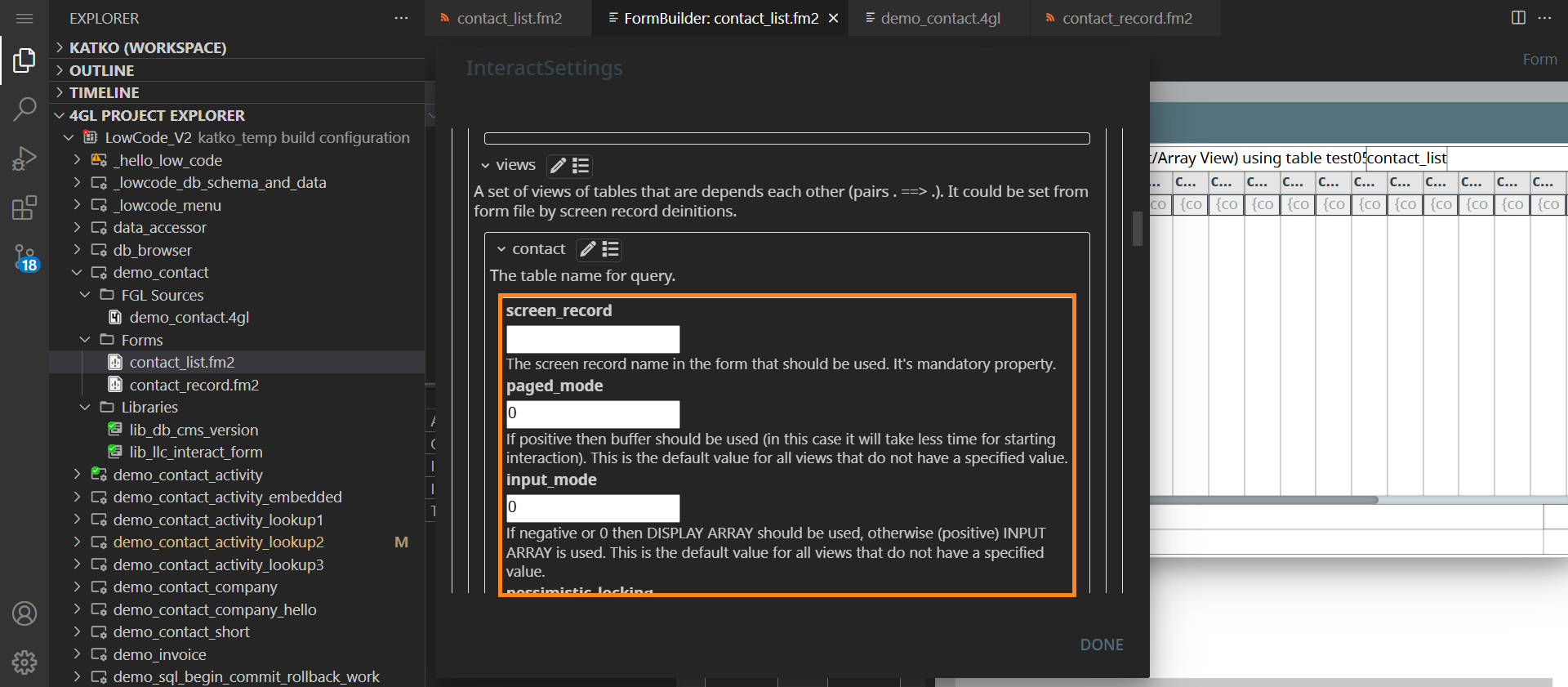

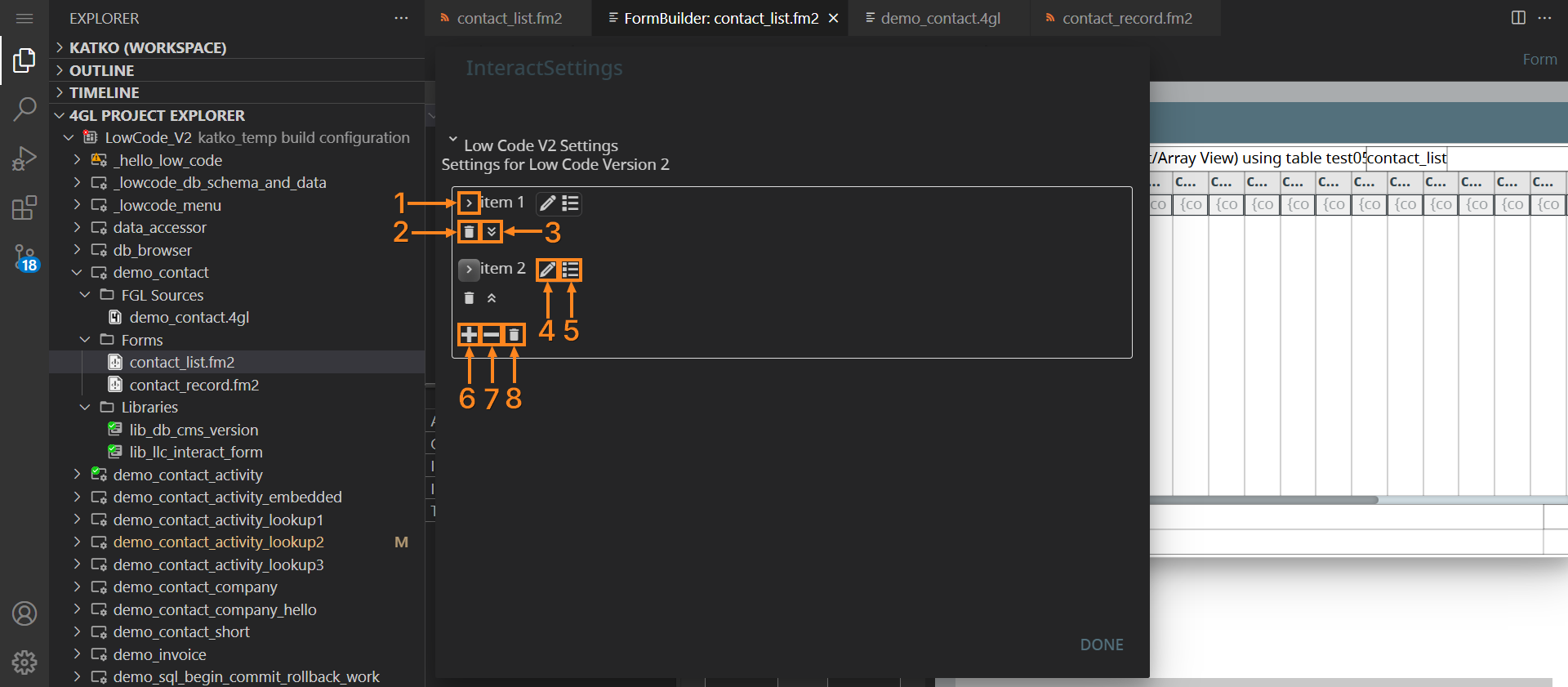

If your form needs several Views, assign an id for each of such Views and put the settings for a specific View into the array as a value for the views key.

For example, the program demo_contact_activity is supposed to have three Views. Hence, the .fm2 form file for this program will have three arrays of View settings inside a main JSON array:

<form xmlns="http://namespaces.querix.com/2015/fglForms"

interactSettings='

[

{

"id": "Contact - Activity",

"views": {

"contact" : {

"screen_record": "scr_contact"

},

"activity" : {

"sql_where": "activity.contact_id = contact.cont_id",

"screen_record": "scr_activity"

}

}

},

{

"id": "Contact Only",

"views": {

"contact" : {

"screen_record": "scr_contact"

}

}

},

{

"id": "Activity Only",

"views": {

"activity" : {

"screen_record": "scr_activity"

}

}

}

]'>



Return to top

Quick Reference Table

Setting Data Type Description If Default (If Not Set) Can be set on InteractForm_Settings Level Can be Set for a View
form_file STRING Defines path to the form file that should be opened and used for interaction. If you use the InteractCurrentForm() function, the form_file setting will be ignored. If this is not set, Lycia will use the currently opened / focused form. Yes
id STRING

If the form has more than one collection of settings (View), id is the identifier for a certain collection.

You can define the id with the value “ “ (one blank symbol) to prevent Lycia LowCode from merging settings from the form file, Lycia LowCode will ignore settings in the form file.

If the id property is not defined in .4gl file, Lycia LowCode will merge settings with the first setting from the form file (if it exists). Yes
log_file STRING Enables the errors output to the log file in addition to the on-screen output, and contains the path to the error log file. If this is not set, the errors will be displayed on the screen only.

Yes


translations HASHMAP OF STRING This setting is a map of message / table / column translations.   Yes
views HASHMAP of View This setting is the mapping for settings for interaction with the specific database table. At usage, it has to reference the name of the database table. If the form file doesn’t have definition of the property interactSettings, then qxcompat tool will implicitly add this property during the compilation of the form file.

Yes


actions HASHMAP OF HASHMAP Defines a list of custom actions that should be added to the interaction.   Yes Yes
actions_on_done HASHMAP OF HASHMAP Custom actions "SubInteraction - Action - Function", which will be added to the subdialog of the defined View (or the whole program if there is only one View in the program), and will be executed after Lycia LowCode executes the built-in events.   Yes Yes
view_attributes HASHMAP OF HASHMAP Defines a list of custom attributes that should be applied to the main dialog or to the subinteraction. You can use any of the DIALOG, INPUT, DISPLAY ARRAY, INPUT ARRAY or CONSTRUCT attribute clauses.   Yes Yes
paged_mode INT Activates the paged / buffered mode of the on-screen output (in this case it will take less time to start the interaction). If set to 1, then DISPLAY ARRAY or INPUT ARRAY will be in paged / buffered mode and will use the ON BUFFER block. If this is not set, the entire table data will be loaded at the program runtime. Yes Yes
input_mode INT If set to 1, adds the INPUT ARRAY interaction. By default, Lycia LowCode makes DISPLAY ARRAY interaction with Insert, Update, and Delete actions. Yes Yes
pessimistic_locking INT If set to any positive integer, will enable processing the database row updates using pessimistic row locking. If this is not set, Lycia LowCode will use optimistic row locking. Yes Yes
confirm_accept INT If set to positive integer, adds the Accept changes confirmation dialog box the program will display after the user clicks the Accept button during INPUT. It is a Button dialog box, asking to confirm the changes (Save / Cancel / Continue actions). This dialog box is disabled by default (default value is 0). Set to 1 or any other positive value to enable. Yes Yes
confirm_cancel INT If set to positive integer, adds the Cancel changes confirmation dialog box the program will display after the user clicks the Cancel button during INPUT. It is a Button dialog box, asking to confirm the changes (Save / Cancel / Continue actions). This dialog box is enabled by default (default value is 1). Set to -1 or other negative value to disable. Yes Yes

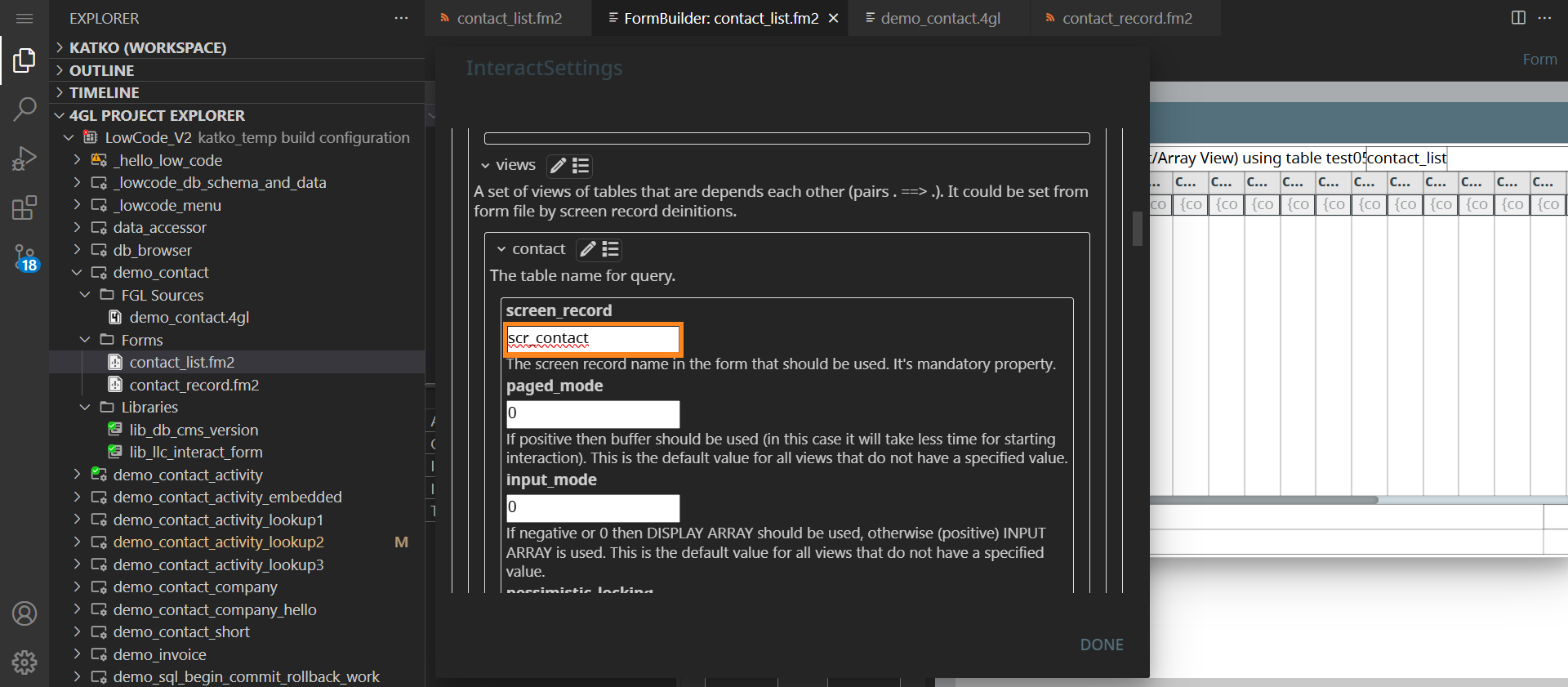

screen_record STRING Mandatory property. Defines the screen record that should be used for interaction. It should be defined in .4gl file or in the .fm2 form file. After merging 4gl-defined and form file-defined settings at runtime, Lycia LowCode should have this property, otherwise it will raise an error. If this is not set, Lycia LowCode will search for the screen record with the $primary$ prefix (if you had one), use that screen record for interaction, and add the interactSettings property implicitly with the appropriate view definition.   Yes
not_update_fields DYNAMIC ARRAY OF STRING Defines the list of fields that should not be activated on user clicking the built-in Edit toolbar button.     Yes
sql_where_search STRING Defines a WHERE clause that will be used from the beginning. Can be modified at runtime with clicking the Filter button on the toolbar. If this is not set, data filtering is managed by database settings.   Yes
sql_where STRING Defines aWHERE clause of the main query that can not be overwritten by the user at runtime. sql_where is concatenated with sql_where_search; can’t be modified by the program user. If this is not set, data filtering is managed by database settings.   Yes
sql_order_by STRING Sorts data in ascending or descending order (using ORDER BY). If this is not set, data sorting is managed by database settings.   Yes

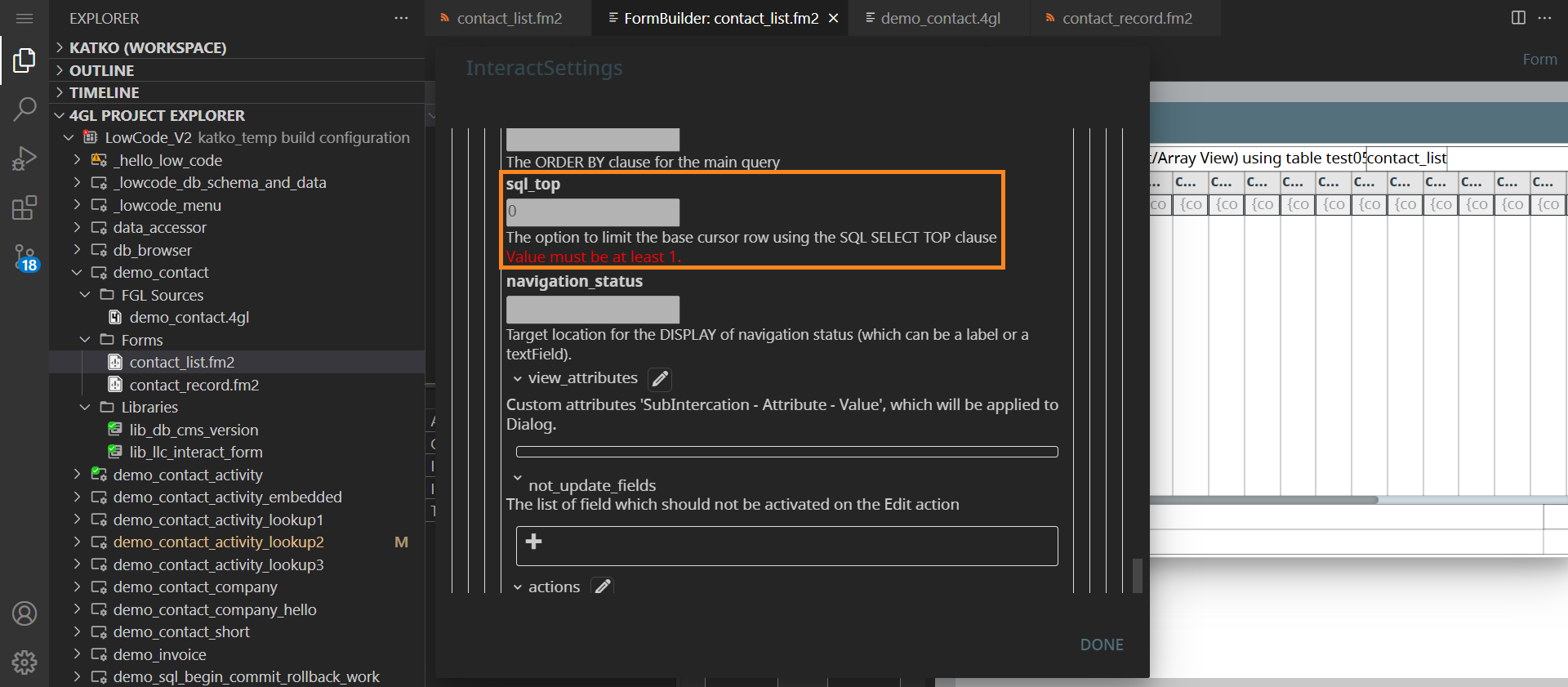

sql_top INT Defines the number of rows to limit the on-screen output using the SQL SELECT TOP clause (supported databases: Informix, MS SQL Server, Oracle and MySQL). If this is not set, the entire table data will be loaded at the program runtime.   Yes
comboboxes HASHMAP OF Combobox This setting is a map of field names and their ComboBox widgets, SQL queries, and SQL WHERE clause. For details please see the full reference page.     Yes
lookups HASHMAP OF STRING It’s a map of field names and their SQL WHERE clause.     Yes
navigation_status STRING Displays the program user's location in the table (table row number used in the interaction) in relation to the total table row number.     Yes
zooms HASHMAP OF Zoom This is a map of function field names and definitions of form for selecting the value.     Yes



Return to top

Default Interaction Settings in Lycia LowCode

Lycia LowCode uses the dynamic DIALOG clause, which by default works UNBUFFERED and WITHOUT DEFAULTS.

You can override that behaviour. To do that, use the view_attributes setting:

DEFINE l_settings InteractForm_Settings # defining a variable for LowCode interaction

LET l_settings.view_attributes[""]["UNBUFFERED"] = FALSE

LET l_settings.view_attributes[""]["WITHOUT DEFAULTS"] = FALSE

Attention: We do not recommend working in the buffered mode.
