maxLength specifies maximum length in bytes for strings input to a field. maxLength specifies maximum length in bytes for strings input to a field.
|
in Lycia Form Designer |
|
|
Form XML code:
<element_name maxLength="125">
By default, maxLength is not specified and is absent from the form and theme XML codes. The property value will appear in the form and theme XML codes only once it is specified.
Possible values: any integer (limited by the data type (and size) of a variable assigned to the field)
Default value: depends of the data type (and size) of a variable assigned to the field
Associated containers, widgets and theme elements:
Associated 4gl syntax:
Associated ui methods:
SetMaxLength ↓
GetMaxLength ↓
Influence and behavior:
The value set to the property specifies the maximum length (in bytes) you will be able to input into the field:
|
lycia form designer |

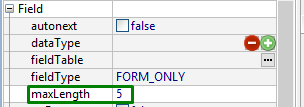

For the first textArea (identifier=f1), maxLength=5:
|
For the second textArea (identifier=f2), maxLength=10:
|
|
4gl code |
MAIN DEFINE f1, f2 STRING
OPEN WINDOW w WITH FORM "maxLength" ATTRIBUTE(BORDER)
MENU COMMAND "input" INPUT BY NAME f1 WITHOUT DEFAULTS INPUT BY NAME f2 WITHOUT DEFAULTS COMMAND "exit" EXIT MENU END MENU
END MAIN
|
|
|
intended input |
0123456789
|
|
|
runtime appearance |
|
|
When set together with autonext, the property can be used in order to increase the interface user-friendliness.
At runtime, you can use ui methods to find out the maximum length of the data string which can be input to the field and change it:
LET widget_var = ui.<widget>.ForName("widget_id1")
CALL widget_var.setMaxLength(<int>)
|
4gl code sample |
DEFINE ta_1 ui.TextArea ... LET ta_1 = ui.TextArea.ForName("f1") CALL ta_1.setMaxLength(10)
|
DEFINE ta_2 ui.TextArea ... LET ta_2 = ui.TextArea.ForName("f2") CALL ta_2.setMaxLength(5)
|
|
initial runtime appearance |
|
|
|
runtime appearance after ui methods were applied |
|
|
LET widget_var = ui.<widget>.ForName("widget_id1")
DISPLAY widget_var.getMaxLength()
|
4gl code |
MAIN DEFINE f1, f2 STRING, ta_1, ta_2 ui.TextArea
OPEN WINDOW w WITH FORM "maxLength" ATTRIBUTE(BORDER) LET ta_1 = ui.TextArea.ForName("f1") LET ta_2 = ui.TextArea.ForName("f2")
MENU COMMAND "display" DISPLAY "With f1, maxLength=", ta_1.getMaxLength(), "." DISPLAY "With f2, maxLength=", ta_2.getMaxLength(), "." COMMAND "change" CALL ta_1.setMaxLength(10) CALL ta_2.setMaxLength(5) COMMAND "exit" EXIT MENU END MENU
END MAIN
|
|
runtime appearance |
|
Example programs:
CVS server: client.querix.com
CVS repository: /lycia_doc_examples
User: client
Project: form_properties
Program: maxlength
