Root container

When you create a form, you cannot put widgets directly into this form. You need a container that will become a seat for all other form elements - containers and widgets. That is a root container.

Most container provided by Lycia Form Designer (except for TabPage) can serve as a root container. The most frequent choice is GridPanel.

Form XML code:

In the XML, there is a <form.rootContainer> tag to which all other tags are placed:

<form.rootContainer>

  ...

<form.rootContainer>

For example,

<form.rootContainer>

  <GridPanel identifier="rootContainer" visible="true">

    ...

  </GridPanel>

</form.rootContainer>

Other containers are then placed inside the root container:

<form.rootContainer>

  <GridPanel identifier="rootContainer" visible="true">

    ...

    <StackPanel visible="true" identifier="c1" gridItemLocation="0,0,1,1">

      <TextField visible="true" identifier="f1"/>

    </StackPanel>

  </GridPanel>

</form.rootContainer>

CSS element selector code:

qx-aum-root-container

Most commonly used form properties:

classNames

identifier

Most commonly used theme properties: depend on the definite container used as the root one

How to add a root container

What to remember when selecting a root container

Layout restrictions for root containers

Conversion equivalents for root containers (from .per to .fm2)

Populating root containers by ui methods

How to add a root container

To add a root container to your form, you

Step 0. Consider and select what container will suit your needs best.

Step 1. Select this container among other containers in Palette.

Step 2. Drop the selected container into your form.

In the short video below, you will see how to add a GridPanel as a root container to the form:

What to remember when selecting a root container

When selecting a root container, you must carefully consider what tasks will be performed by the form because the choice of the root container affects heavily resizing and layout possibilities for your form at runtime.

For example,

More details can be obtained from the pages about different containers.

Layout restrictions for root containers

Lycia imposes some restrictions on the layout of root containers:

  1. If any element (including root containers) has horizontal/vertical alignments other than STRETCH, its size must be defined by a) its size properties or b) the size of its descendents.
  2. Root containers with horizontal/vertical alignments set to STRETCH ignore any size properties when opened in the full-screen mode.
  3. Root container with horizontal/vertical alignments set to STRETCH must have some size specified when opened in a bordered window. If no size is specified, the root container will get the default size of 600x400 px.

More details about existing layout rules are here.

Conversion equivalents for root containers (from .per to .fm2)

With Lycia, you do not need to recreate your .per forms - you can easily convert them in LyciaStudio or via the command line tools.

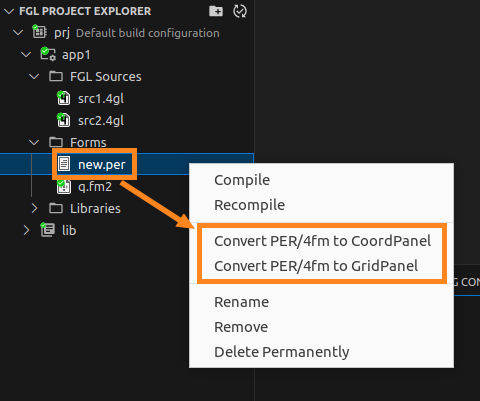

In LyciaStudio, there are two options for converting .per forms into .fm2 - Convert to CoordPanel and Convert to GridPanel:

If you convert a .per form with a SCREEN layout and want to get an .fm2 form with GridPanel used as root container, you can do it by qform:

qform --scrcompat file_name.per

The table below summarizes what container you will get when .per forms are converted into .fm2:

original layout

.per or .4fm

resulting container

.fm2, Convert to CoordPanel

resulting container

.fm2, Convert to GridPanel

SCREEN layout

CoordPanel

GridPanel

GRID layout

GridPanel

GridPanel

HBOX layout

StackPanel with horizontal orientation
(orientation="Horizontal")

StackPanel with horizontal orientation
(orientation="Horizontal")

VBOX layout

StackPanel with vertical orientation
(orientation="Vertical")

StackPanel with vertical orientation
(orientation="Vertical")

TABLE layout

Table

Table

TREE layout

TreeTable

TreeTable

FOLDER layout

Tab

Tab

GROUP layout

GroupBox

GroupBox

SCROLLGRID layout

ScrollViewer with embedded GridPanel

ScrollViewer with embedded GridPanel

Populating root containers by ui methods

Root containers cannot be created dynamically - by ui methods.

You can populate any form with containers and widgets by ui methods - but this form must already have a root container.

Here is an example how to add containers and widgets to a root container:
