classNames

Form and theme XML code

Possible and default values

Associated containers, widgets and theme elements

Associated ui methods

Influence and behavior

classNames is used to apply a certain class - custom or predefined - to a container or widget.

Form XML code:

<element_name classNames="myclass">

Possible values:

one of the list of predefined classes provided by Lycia

a custom (user-defined) class

Default value:

not specified

Associated containers, widgets and theme elements:

BorderPanel

CoordPanel

GridPanel

GroupBox

StackPanel

ScrollViewer

Tab

TabPage

Table

TreeTable

BlobViewer

Button

Calendar

Canvas

CheckBox

ComboBox

FunctionField

Label

PlaceHolder

MenuBar

MenuGroup

MenuCommand

ProgressBar

RadioGroup

ListBox

Separator

Spinner

TextArea

TextField

Toolbar

ToolbarButton

TimeEditField

WebComponent

Associated ui methods:

SetClassNames

GetClassNames

Influence and behavior:

classNames is used to attribute containers and widgets to certain classes in order to ensure the necessary runtime behavior of this container or widget as a member of a certain class:

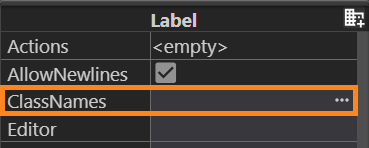

property set in lycia form designer

For the first Label (identifier=lb1), classNames=first_class:

For the second Label (identifier=lb2), classNames=second_class:

properties applied to the class in lycia theme designer

runtime behavior



At runtime, you can use ui methods to specify the application behavior:

LET widget_var = ui.<widget>.ForName("widget_id")

CALL widget_var.setClassNames(...)

DISPLAY widget_var.getClassNames()

4gl code sample

DEFINE lb_1, lb_2 ui.Label

...

LET lb_1 = ui.Label.ForName("f1")

LET lb_2 = ui.Label.ForName("f2")

...

DISPLAY "With lb1, classNames=", lb_1.getClassNames()

DISPLAY "With lb2, classNames=", lb_2.getClassNames()

...

CALL lb_1.setClassNames("first_class")

CALL lb_2.setClassNames("second_class")

runtime behavior

runtime behavior

The example above were taken from the example program.
